2 x 5 MVA 33/11 kVsub-station at Medikinal

← All sub-station projects
Earth pits across the yard, the control building beyond
Voltage
33 kV
Client
—
Location
Medikinal
District
Raichur
Status
Completed

Scope of work.

“Establishing 2x5 MVA ,33/11kV Medikinal sub-station, Construction of 33kV Single Circuit Transmission line of 12.40Km using 9.5 Mtr RCC Poles at average span of 50Mtr tapping from existing 33kV Nagalapur Line (tapping near Mudgal 110kV S/S) and Construction of 11kV Line using 9.0Mtr RCC Poles for a distance of 16kms on TTK Basis”

Scope items

  • 012 x 5 MVA, 33/11 kV sub-station
  • 0212.40 km of 33 kV single-circuit line on 9.5 m RCC poles at 50 m span
  • 0316 km of 11 kV line on 9.0 m RCC poles
Category
Sub-station
Voltage class
33 kV
Configuration
33/11 kV
Client
Not stated
Location
Medikinal
District
Raichur
Status
Completed
Financial year
2017-18
Tags
turnkey
Rows of isolator and current-transformer structures

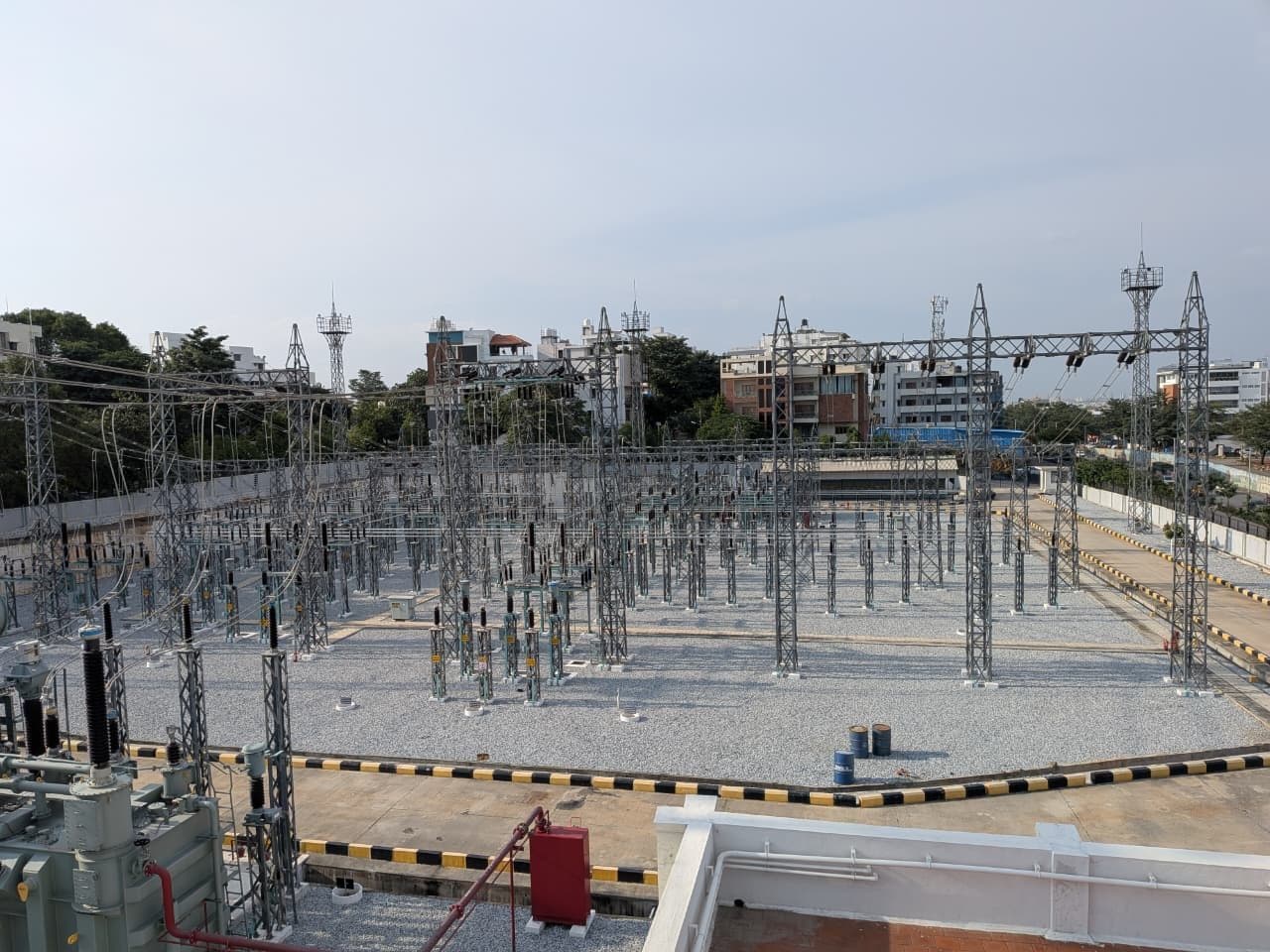

The switchyard from the control building's roof, the city beyond

Medikinal

The location named in the record could not be geocoded, so this project is not placed on the map.

Coordinates

—

Precision

—

Raichur district, Raichur — 14 projects, 2 under execution, district-level position
